P12S01
Single-phase Smart Meter
The meter for commercial and industrial customers. Communication capabilities over GSM/GPRS, RF, Optical, RS485, the meters are aimed to be used fo AMI/AMR/AMM and smart grids.
Key Feature
- Import and export active power.
- Import and export reactive power.
- Apparent power.
- Register 13 month of billing data.
- Maximum demand.
- Up to 4tariffs, 100special days, 12season tables, 8week types, 8day tables and
- 12entries in a day table.
Technical Specification
| Voltage Ratings | Reference Voltage Operating Voltage Range Supply Frequency |
240V/400V 60%Un~120%Un 50Hz |
| Current Ratings | Basic Current (lb) Maximum Current (lmax) Staring Current |
5A 100A ≤4‰lb |
| Accuracy | Active Reactive |
Class B Class 1 |
| Power Consumption | Voltage Circuit (without module) Current Circuit |
≤W, 4VA ≤0.5VA |
| Insulation Strength | AC Voltage Test Impulse Voltage Test |
4kV during 1min 1.2/50μs mains connections 6kV |
| Communication Interface | Optical port, GSM/GPRS/RF/RS485 | |
| Temperature | Operation Range Limit Range |
-25°C~70°C -40°C~80°C |
| Protection | Power overload Line/Load reversal Current overload Over/Under voltage |
|
| RTC Accuracy | Accuracy Service life |
≤ 5 ppm 12 years |
| IP Rating | IP54 | |
| Net Weight | 1.16kg | |
| Device Life | Service Life UV Resistance |
15 years 15 years |
| Internal Control Relay | 250V AC/DC, 3A | |
| Battery | Backup Battery Life | 15 years |

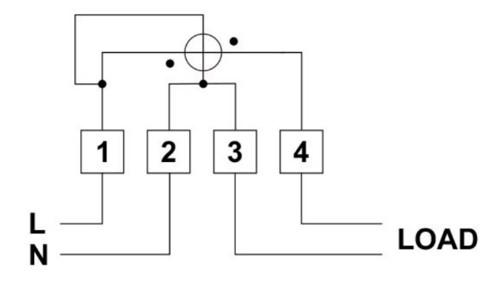

Connection Diagram without disconnector

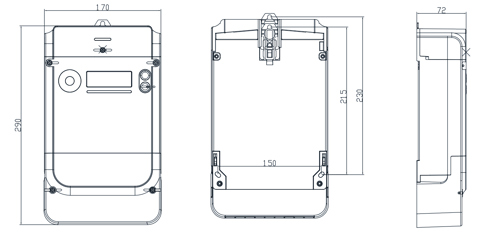

Dimension
